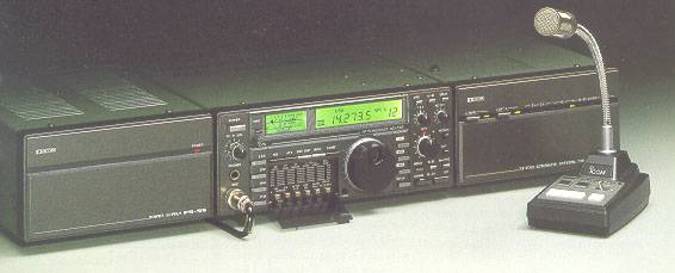

ICOM IC-735 160M-10M All-Mode Transceiver


SPECIFICATIONS



GENERAL
Frequency coverage :  Receive    0.1~30.0 MHz
   Transmit  160-m band    1.8~2.0 MHz
                     80-m band    3.5~4.0 MHz
                     40-m band    7.0~7.3 MHz
                     30-m band    10.1~10.15 MHz
                     20-m band    14.0~14.35 MHz
                     17-m band    18.068~18.168 MHz
                     15-m band    21.0~21.45 MHz
                     12-m band    24.89~24.99 MHz
                     10-m band    28.0~29.7 MHz
Modes :  SSB(A3J), CW(A1), FM(F3), AM(A3)
Number of memory channels :  12
Antenna impedance :  50 ohm unbalanced
Usable temperature range :  -10 ° C~ +60 ° C (+14 ° F~ +140 ° F)
Frequency stability
K		 :  Less than +/-200Hz (from 1 min. after power is
   ON to 60 min.)
   Less than +/-30Hz (after 1 hr., +25 ° C)
   Less than +/-500Hz (0C~+50 ° C)
Power supply requirement :  13.8V DC +/-15% (negative ground)
Current drain (at 13.8V DC) :  Receive     Squelched                      1.2A
   Max. audio output power                1.5A
   Transmit   At max. output power   20A
Dimensions :  241(W) x 94(H) x 239(D) mm
   9.5(W) x 3.7(H) x 9.4(D) in.
   Projections not included
Weight :  5.0kg (11.0 lb.)
TRANSMITTER
Output power :  10~100W (SSB, CW, FM)
    10~40W (AM)
    continuously adjustable
Modulation system :  SSB Balanced modulation
   AM    Low power modulation
   FM    Variable reactance frequency modulation
Max. frequency deviation :  +/- 5kHz (FM)
Spurious emissions :  More than 50dB below peak output power

OPTIONS
 AT-150*   100W AUTOMATIC ANTENNA TUNER
 IC-2KL   500W HF LINEAR AMPLIFIER
 IC-4KL   1kW HF LINEAR AMPLIFIER
 IC-AT500   500W AUTOMATIC ANTENNA TUNER
 AH-2   HF AUTOMATIC ANTENNA TUNER
 IC-PS30   AC POWER SUPPLY (13.8V, 25A)
 PS-55*   AC POWER SUPPLY (13.8V, 20A)
 IC-SP3   EXTERNAL SPEAKER (8ohm, 5 W)
 SP-7*   EXTERNAL SPEAKER (8ohm, 5 W)
 SP-20   EXTERNAL SPEAKER WITH AUDIO
    FILTERS (8ohm, 4 W)
 IC-MB5   MOBILE MOUNTING BRACKETT
 SM-6   ELECTRET CONDENSER-TYPE DESK
    MICROPHONE
 SM-8   DESKTOP MICROPHONE
 SM-20   DESKTOP MICROPHONE
 IC-EX243   ELECTRONIC KEYER UNIT
 EX-627   HF AUTOMATIC ANTENNA SELECTOR
 UT-30   PROGRAMMABLE TONE ENCODER UNIT
 FL-32A   CW NARROW FILTER (9.0106MHz,
     500Hz/~6dB)
 FL-63A   CW NARROW FILTER (9.0106MHz,
     250Hz/~6dB)
 CT-17   CI-V LEVEL CONVERTER
* Matching style with the IC-735
